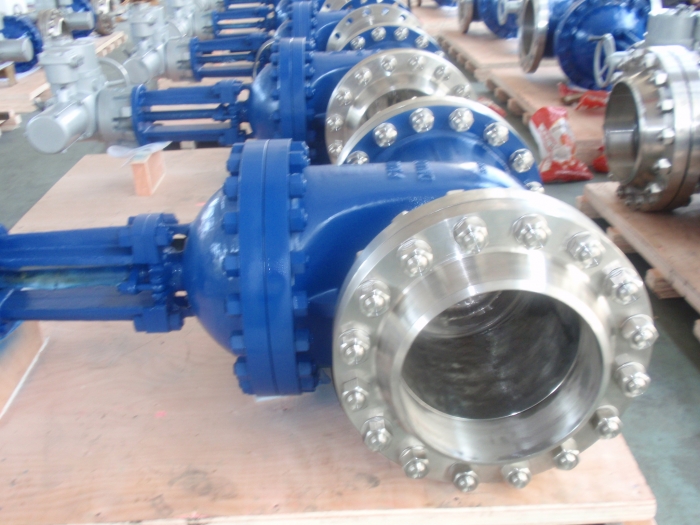

Electric operated API 600 flanged gate valve designed according to API 600, flanged end to ASME B 16.5, has a specific and restricted function to release or block the flow of different types of fluids in pipelines. The main feature of a cast steel gate valve is that its sealing surface between the "gate" and its seat is flat. In this way, API 600 cast steel flanged gate Valve is indicated and designed for use in several types of installations, gate valves operate fully open or fully closed according to the precision of use.
Design and manufacture: API 600;
Inspection and Test: API 598;
End flange dimension: ASME B 16.5 / ASME B 16.47;
Face to face dimension: ASME B 16.10, DIN 3202;
Pressure-temperature ratings: ASME B 16.34.
Shell Materials : Carbon steels ASTM A216 Grades WCB and WCC; Alloy Steels ASTM A217 Grades WC1, WC6, WC9, C5 and C12; impact-tested carbon-manganese steels ASTM A352 Grades LCB and LCC; corrosion-resistant steels ASTM A351 Grades CF3, CF3M, CF8 and CF8M; duplex ASTM A890 Grade 4A, also available for forged steel material.
