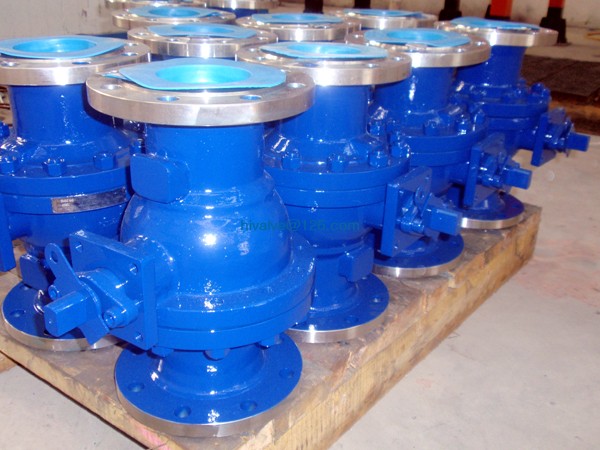

Carbon steel floating ball valve, RF
| Name: | Carbon steel floating ball valve, RF |
|---|---|
| Size: | 1/2in-8in |
| Pressure: | Class 150 to 2500 |
| Ends: | Flanged RF |
| Operation: | manual |
| Materials: | WCB, LCB, CF8(L), CF3(L), 4A etc |
Product Description
Carbon steel floating ball valve, RF
Bolted bonnet, two-piece body, floating ball, full or reduced bore, blowout proof stem, fire-safe and anti-static
Standards compliance
Design and Manufacture: API 608, API 6D, BS5351
Face to face(end to end): ANSI B16.10, API 6D
Flanged connection: 2" to 24" ANSI B16.5
Fire-safe standard: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 598, API 6D
Material Specifications
Body/Cap: WCB, LCB, A351 CF8, CF8M, CF3, CF3M, 4A, CN7M
Ball: A105+ENP, LF2+ENP, A182 F304, A182 F316, A182 F304L, A182 F316L, A182 F6a, F51
Seal ring: PTFE / RPTFE / NYLON / Devlon / PEEK / metal to metal
