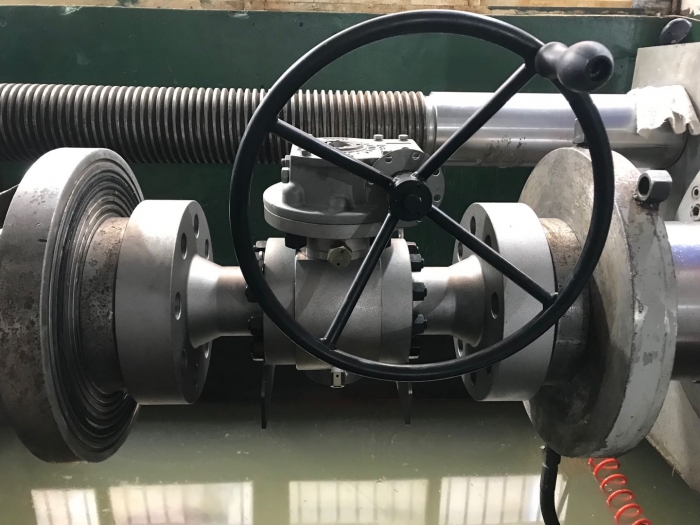

Reduced bore forged trunnion mounted ball valve, API6D

  • Reduced bore forged trunnion mounted ball valve, API6D
Name:Reduced bore forged trunnion mounted ball valve, API6D
Size:2in-56in
Pressure:Class 150 to 2500
Ends:Flanged RF, RTJ
Operation:manual, electric, pneumatic
Materials:A105, LF2, F304(L), F316(L), F51

Product Description

Reduced bore forged trunnion mounted ball valve, API6D


Design Features:

Trunnion Mounted, Side Entry, Independent Ball & Stem

Full Bore/Reduced Bore, Forged 3pcs Bolted Body

Anti-Blowout Stem, Fire Safe Design to API 6FA/607, Anti-static Device, Double Block & Bleed Function, With Vent and Drain Holes, Grease Injection on Stem & Seat, Extended Bonnet upon request.


Design Specification:

Design: API 6D, API 608, BS5351, ASME B16.34

Size: 2"-56" (DN50-DN1400)

Pressure Rating: 150Lb-2500Lb

Face to Face: API 6D, ANSI B16.10

Body Materials: A105, A350 LF2, A182 F304, F316, F304L, F316L, F51, F53

End Connection: Flanged RF RTJ/ANSI B16.5 & ANSI B16.47, BW (ANSI B16.25)

Ball Coating: ENP, Tungsten Carbide Coat (TCC), Chrome Carbide Coat (CCC)

Test: API 6D, API 598

Marking: MS SP-25

Actuation: Lever, Worm Gear, Electrical, Pheumatic, Hydraulic, etc.
