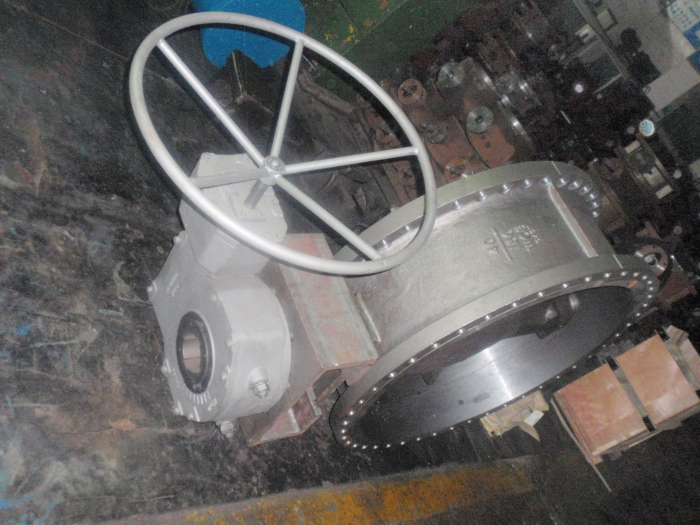

API609 Class150 triple eccentric butterfly valve
| Name: | API609 Class150 triple eccentric butterfly valve |
|---|---|
| Size: | 2in-80in |
| Pressure: | Class 150 to 900 (PN6-PN150) |
| Ends: | Flanged RF, RTJ |
| Operation: | manual, electric, pneumatic, hydraulic |
| Materials: | WCB, LCB, LCC, C5, C12A, CF8, CF8M, CF3, CF3M, CF8C, 4A, 5A |
Product Description
API609 Class150 triple eccentric butterfly valve, laminated multi-layer sealed or metal to metal, zero leakage; It is widely used in water treatment, petroleum, chemical, power plant.
Valve type: Butt weld, wafer, double flange, wafer lug
Design standard: BS EN 593, API 609 or ASME B16.34
Face to face length : EN558-1 / ISO5752 / API609 / ASME B16.10
Flange dimension and drill : EN1092 / ISO5752 (DIN2501) or ASME B16.5 / ASME B16.47
Size: DN80 to DN3000, 3" to 120"
Pressure rating: PN6 to PN150, ANSI Class150 to Class 900
Applications: water treatment, petroleum, chemical, power plant etc.
Design and manufacture: API 609, BS 5155, MSS SP-67, EN593, MSS SP-68, GB/T12238, AWWA C504;
Testing and inspection: API 598, ISO 5208, BS 6755-I etc;
Face To Face: API 609, ANSI B 16.10, ISO 5752, DIN3202-K1, EN558-1 20 Series, BS5155, MSS SP-67 etc;
Flange Drilling: ANSI B16.5, B16.47, API 605, AWWA C207, EN1092, BS 10 Table / DIN / IS / JIS Std;
Pressure Rating: PN6, PN10, PN16, PN25, PN40, PN63, Class 150, Class 300, Class 600, Class 900.
Leakage Class: ANSI CLASS V & VI (Zero Leakage).
Operation: Up to DN150 lever operated, and above gear operated. On special request available for electric, pneumatic and hydraulic operated.
